EPS XPS Foam CNC Cutting Machine Plastic Foam CNC Cutter EPS CNC 1320 1330 5 Axis Hot Wire Cutting Machine(Can be customized size)
描述
EPS XPS Foam CNC Cutting Machine Plastic Foam CNC Cutter EPS CNC 1320 1330 5 Axis Hot Wire Cutting Machine(Can be customized size)

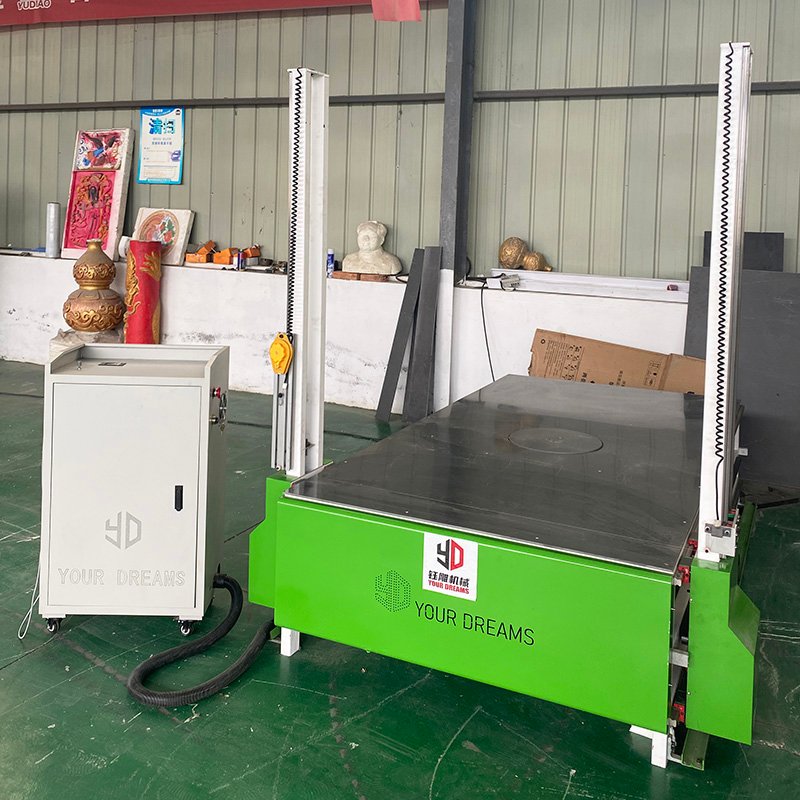

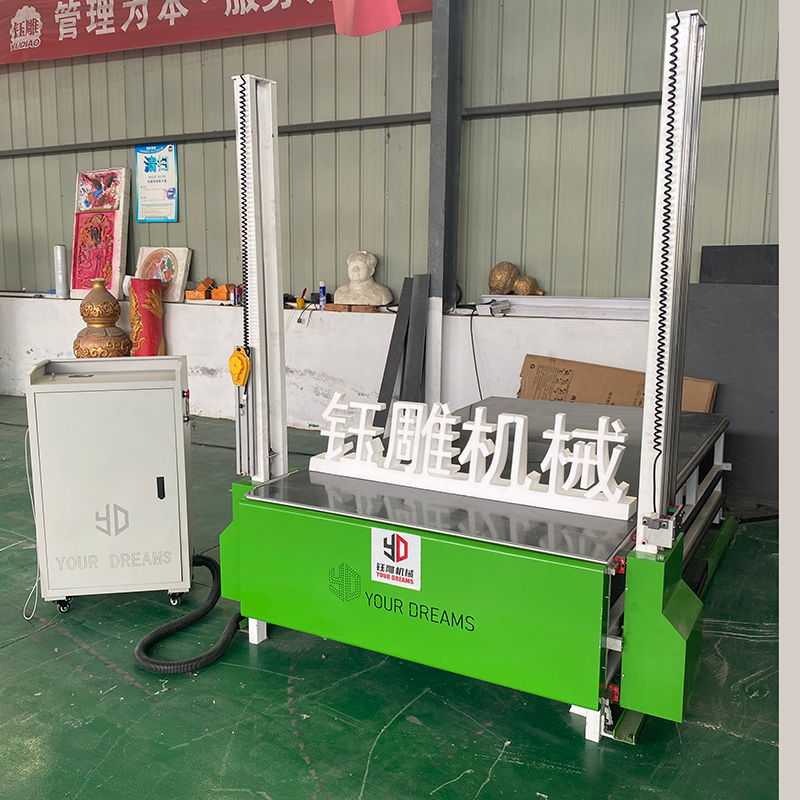

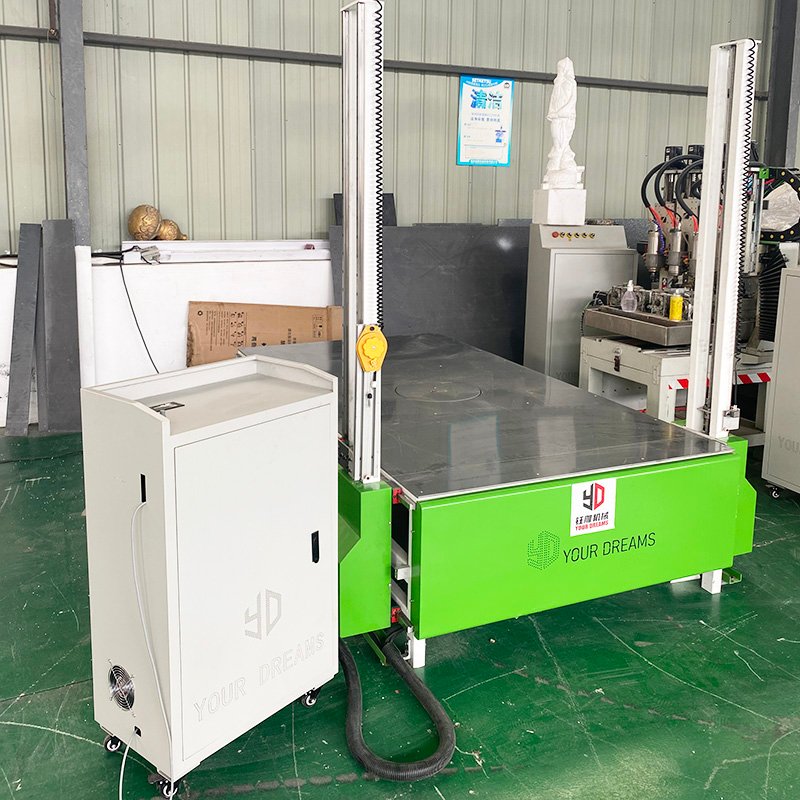

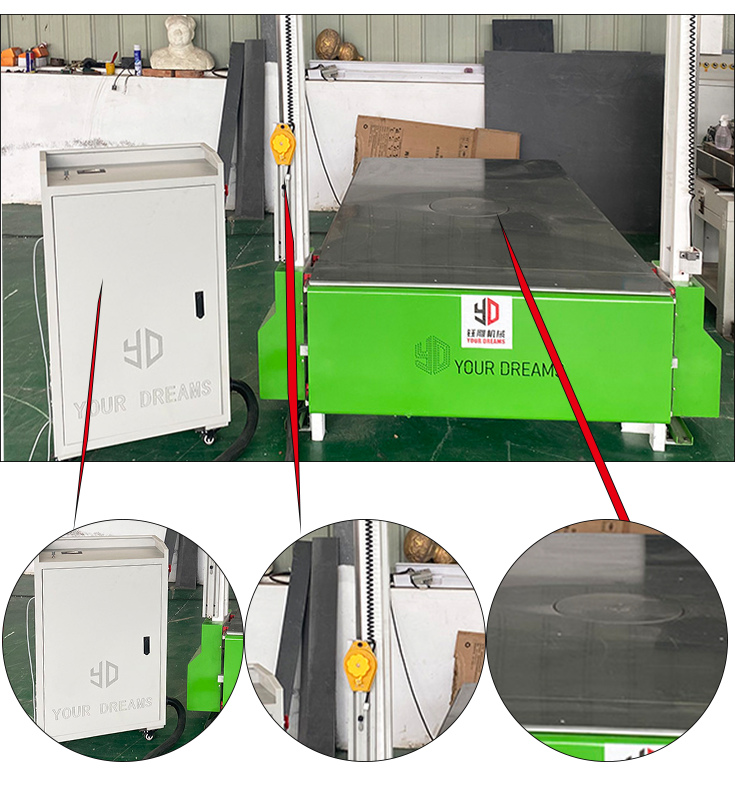

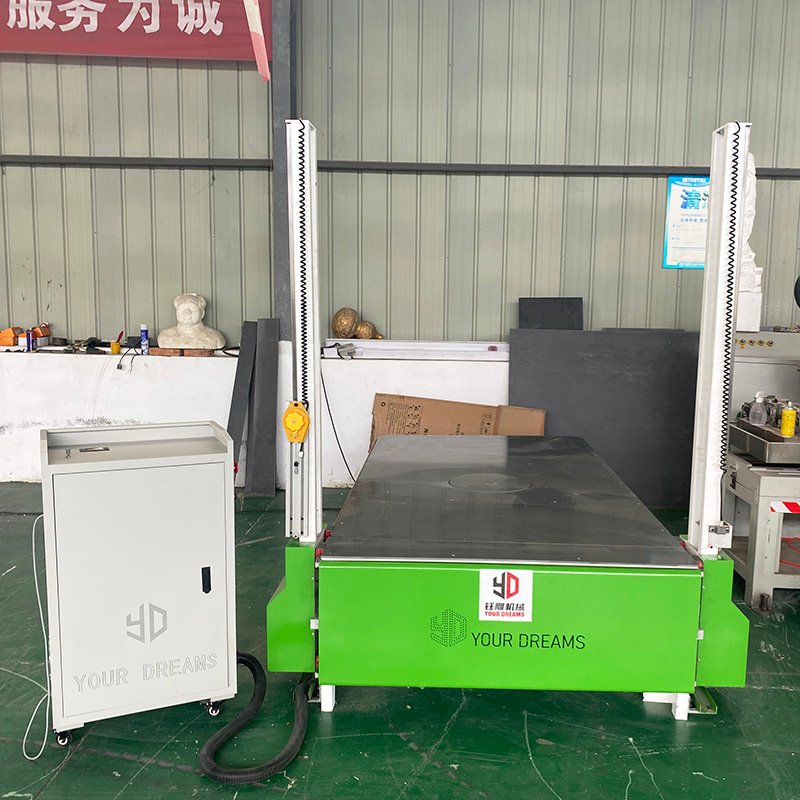

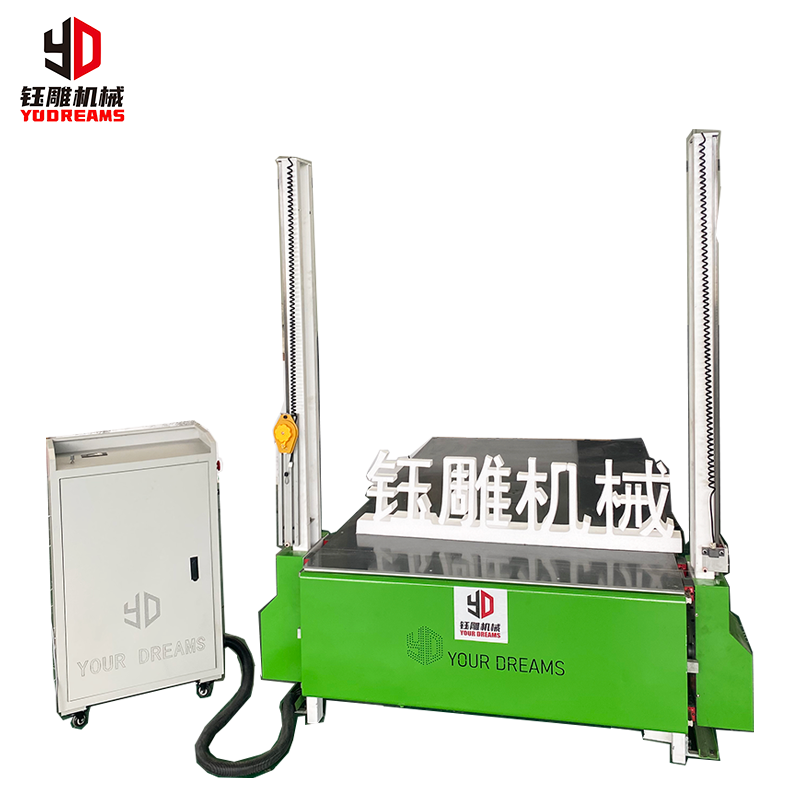

YD EPS Automatic 5 Axis CNC hot wire cutting machine can cut various EPS/XPS/EPP/PE/PU and other foam products for decoration and construction industry, easy operation and long working life.
1. Machine is suitable for cutting EPS/XPS/EPP/PU/PE and other foams.
2. Machine can work on any Windows PC with network connection.

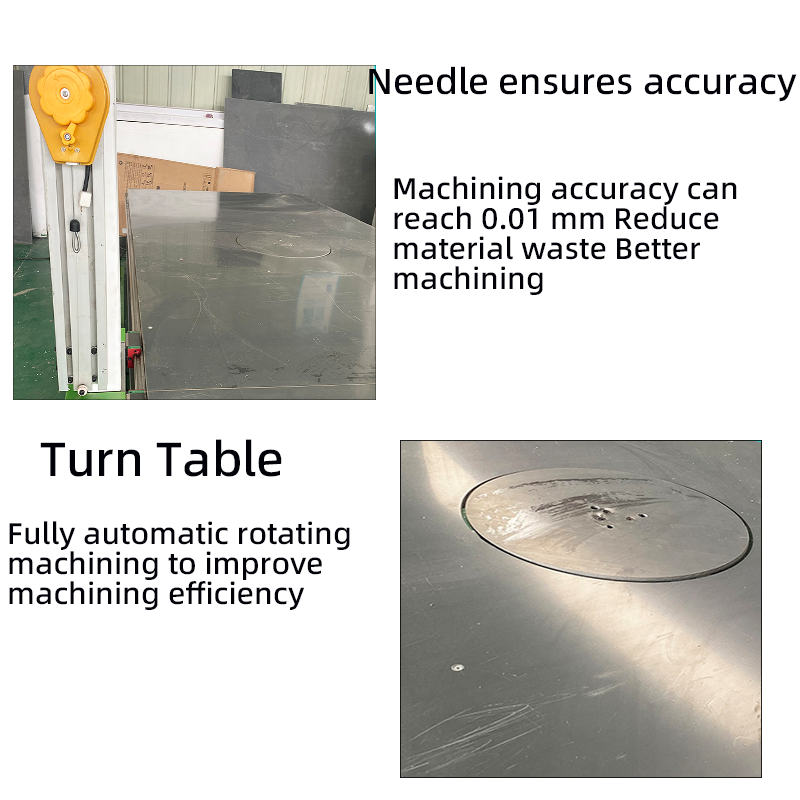

3. Four independent axis as standard, while turn tables extend the machine by a 5th axis.Roration lathe as option.
4.High Performance, Sturdy steel frame and Aluminum table targets the commercial production.
4.High Performance, Sturdy steel frame and Aluminum table targets the commercial production.
5. For the simultaneous cutting with multi cutting wires.
| Cutting area | Cutting area Length 3000mm*width 1300mm*height 1300mm, if needmulti wireworking height will be less than 1300mm, about1000mm ( 5 wires max) |
| Table surface | PVC table for eps foam cutting machine |
| Traveling Positioning Accuracy | ±0.3mm |
| Repositioning Accuracy | ±0.2mm |
| Working dpi | ±0.4mm |
| Rotating Speed | 0-4000mm/min |
| Motor speed | 100-5000mm/min |
| Machine working speed | 400-500mm/min max. if use imported wire, working speedwill be about1200-1500mm/min max |
| Machine Structure | Light structure |
| Command | G-code*u00*.mmg*.plt |
| Working voltage | AC220V/50HZ or 110V 60HZ |
| Weight with package | 260KGS/300KGS |
| Package size | 1.75*3.75*1.6M |
| Control System | MACH3 with computer |
| Guide Rail | Round guide rail |
| Humidity | 10%-90%(without condensation) |
| Temperature | 10-50°C |

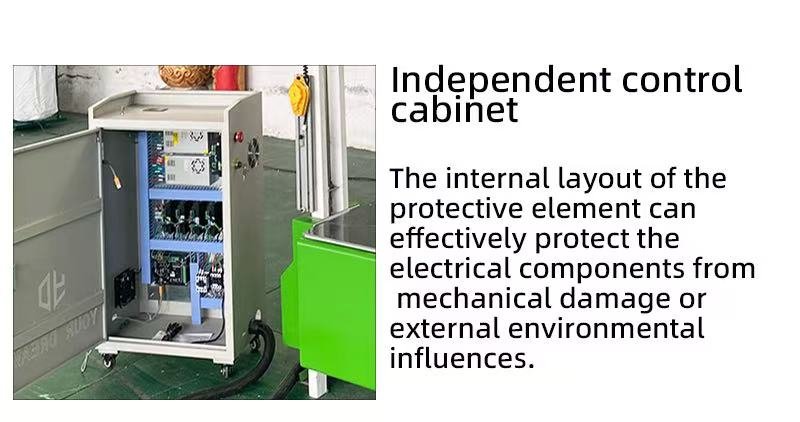

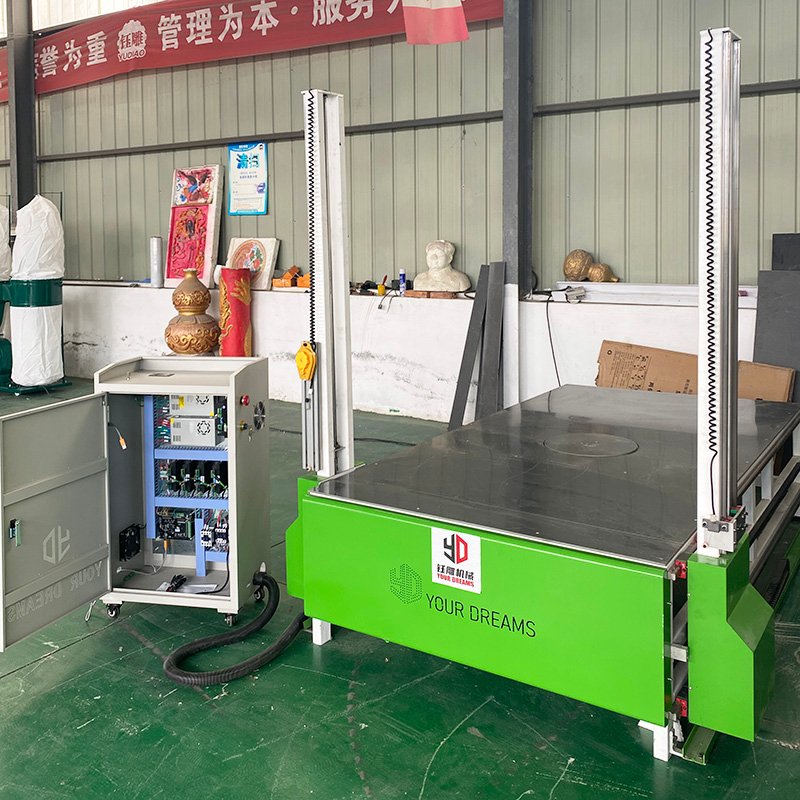

| Control box | Separate |
FAQ
Q1: What materials can your foam cutting machine handle?
A: Our machines are optimized for EPS, XPS, PU, EPP, and Depron foams (density range: 15-300 kg/m³). Non-foam materials like
lightweight balsa wood and acrylic sheets can also be processed with optional toolheads.
Q2: How precise is the cutting accuracy?
A: With our laser-guided thermal wire system, we achieve ±0.1mm dimensional accuracy and Ra 3.2µm surface finish, suitable for
museum-grade art reproductions
Q3: Is special training required to operate the machine?
A: While basic CNC knowledge is helpful, our machines include:
Intuitive touchscreen interface
AI-assisted error prevention system
Free access to our FoamCut Pro Academy (20+ video tutorials)
Q4: What file formats does the software support?
A: Full compatibility with:
3D: STL, OBJ, 3MF
2D: DXF, SVG, AI
Direct plug-ins for Rhino, ZBrush, and Blender
Q5: What maintenance is required?
A: Our maintenance-free design includes:
Self-cleaning wire guides
Lifetime lubricated rails
Only recommended: Weekly air filter replacement (tool-free)
其他信息
| 重量 | 350 公斤 |
|---|---|
| 尺寸 | 1200 × 2000 × 2500 毫米 |
